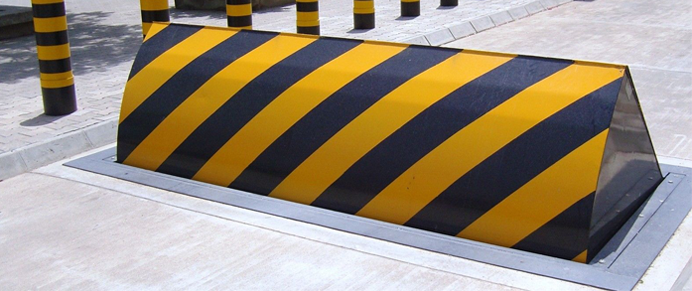

Road blocker is the most commonly-used system in the areas like military facilities, government buildings, airports and stadiums where the entries-exits must be made in a controlled and safe manner against any vehicle attacks.
The system’s case is designed as resistant to hits by vehicles and all relevant components of the systems are strengthened against any attacks. Arms Blocker System works uninterrupted even at the highest-density places thanks to the hydraulic operation system.
This system is synchronized with the rising bollard and other safety systems, and keeps the defense at the maximum level in case of possible attacks, and thus ensures the secure entrance of the vehicles into relevant areas.
Height | 500 - 700 - 900 - 1100 - 1300 mm |
Width | 2 000 - 3 000 - 4 000 - 5 000 - 6 000 mm |
Wall Thickness | 8-10-15 mm |
Moving Part Sheet Metal Type | ST 37-3 N / ST 44-3 |
Moving Part | Blasting + Power Coating |
Weight | 1100, 1500, 1850, 2250, 3000 kg |
Outer Sheet Metal Type | Galvanized |
Connection Points | M8X15 İmb us Countersunk Head Screws Stainless |
Operating Speed | 4 - 6 sec. |
Control Panel | A-GA Board |
System Security Support | Loop Sensor |
Engine Power | 1,5-2.2-3 KW |
Movement Mechanism | Hydraulic |
Min. Operating Pressure | 50 bar / 725 psi |
Max. Operating Pressure | 100 bar /1450 psi |
Hydraulic Hose | R2 8/3 330 Bar |
Hydraulic Oil | 68/46/32 |
Unit Operating Voltage | 380/220 V ( AC) |
Operating Temperature | -25 °C / 50+ °C |
Manually | Ball Valve |
Can be connected to any kind of Access control system | License Plate Recognition, Card Reader,etc |
OPTIONAL | |
Manual Lifting | Hand Pump |
Power Outage | Accumulator Support |
Warning Equipment | Flasher / Traffic Lamp |
E.F.O. Circuit For Emergency Lifting | Yes 2 sec |
Control Panel | PLC (Programmable Logic Controller) |
System Security Support | Safety Photocell |
Hydraulic System Heating - Cooling | |
Water Drain Pump |
