AMF Controller

SISPL AMF controller is an integrated multifunction high speed micro controller-based System. It’s having a provision of single phase/three phase mains and DG with Automatic/manual modes of operations. This controller includes protection for Main’s and DG (as per standards). This controller in having battery and room temperature monitoring facility

SISPL AMF Controller system is designed for telecom sites. It is compatible with all PIU/IIMPS/AMF Panel where any make of PIU/IPMS /AMF are not working or faulty. System Infra solutions Make Energy Controller is highly reliable & compact in size

(Weight=350gm Dimension, Length=366mm. Width=80mm. Height=225mm)

The highlighting feature of AMF controller is that it reduces the operational costs through a well-researched fuel management system The fault management and functionality units of this system is adaptable for Air-conditioners, Batteries, Fire alarms, Diesel Gen sets, Security, ACPower, DC power, lightening and surge protection, etc.

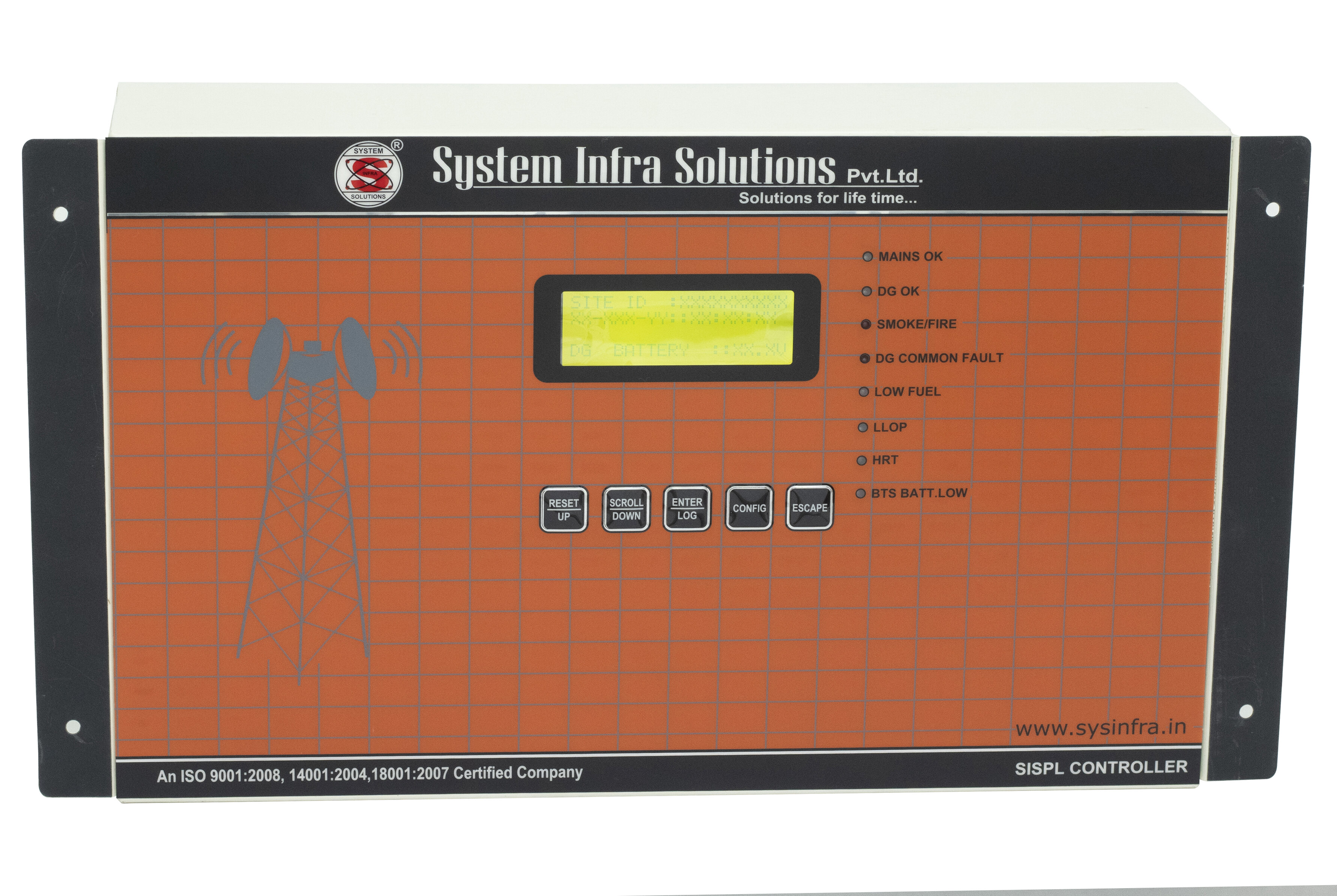

(AMF Controller)

FEATURES OF AMF CONTROLLER


  1. AC distribution unit.
  2. Fire Alarm module.
  3. Aviation lamp controller.
  4. Auto phase Selector.
  5. IPMS logic.
  6. SVR controller.
  1. Battery Monitoring (Battery Current, SOC, Energy)
  2. Real time and events recording.
  3. One/Two DG control.
  4. Real time restriction for DG running in different time slot.
  5. Configuration (almost fifty programmable parameters).

This controller follows a rational approach towards power management through

  1. Integrated AMF Function.
  2. AC power measurement.
  3. DG parameter monitoring.
  4. Alarm Consolidation.
  5. Remote monitoring facility

RC features Comparison with Other Make


S. No. Description Any Make System Infra Make
1 Hard ware Complicated Easy (Single Card use)
2 Soft Ware Multiple Software Single Software
3 Wiring diagram Complicated Easy
4 Logic Implementation Complicated Easy
5 Dual DG Facility NO/ Other Circuit inbuilt
6 Real time data YES YES
7 Protocol Standard As per customized / Standard
8 Event log 500/1000 More than 5000 events
9 Card Fault Ratio Higher Less
10 NOC YES YES
11 Fuel Monitoring facility Optional Inbuilt
12 FOR SMPS Floating Charging Yes Yes
13 Boost Charge Yes Yes if Protocol Provided
14 R & D for Software with H/W In-house
15 At Site Customized Facility NO YES (At Site require)
16 Other Standard Feature Yes Yes
17 Single Windows facility Optional Yes (Repairing /Installation & commissioning Any MAKE Modules/SMPS/PIU/I2PMS/All passive Equipment with component Level & Etc.
18 Cost Very High Less

CONTROLLER SPECIFICATION:

The AMF controller Standard as given below.

DESCRIPTION STANDARD SPECIFICATION
Capacity Range of 5 to 50 KVA
Multi Phase Logic AMF controller will work on 1Phase, 2phase or 3Phase. 1.6 mm thick CRC sheet. Split type modular design.
MTBF All material & workmanship will be of professional quality to ensure MTBF requirement. The MTBF of the AMF controller is more than 70000 hrs.
Compliance CE, Tested for safety, EMI/RFI compliance
Micro Controller High-Speed micro controller True RMS for all voltage & current All the inputs to the measurement board will be duly protected against surge as per IEEE-62.41 The measurement circuit will be rated at least twice of the maximum input range, each independent for AMF & module
Time Real time & date-programmable
Event Logs Last 1000 events
RS 232t for SISPL For PC interface to adjust the critical data and unload the
Use Only alarms, This Port will be used for configuration of PFCs.
Energy Will be able to measure the DG energy (Cumulative KWH &Hrs) Will be able to measure the EB energy (Cumulative KWH &Hrs) Will be able to measure the Battery energy (Cumulative KWH & Hrs)
Data Transfer AMF controller will be equipped with suitable GPRS modem / GPRS DTU and able to process the data.
DG on load After DG starts and supply is healthy
Blackout delay 5 Seconds between Main’s and DG contactor changeover
DG cooling time 15 minutes
DG start attempts Three attempts with delay between attempts ( 40 -40 -40 sec) (settable)
DG Lock time After three very short Main’s restoration 10-10-20 minutes, DG will run for 1hrs (settable) continuously
Stop Command duration Settable from 10 to 50 seconds
Battery charger & DG controller unit Automatic DG battery, SMPS charger with boost/trickle charging & with constant current charging facility (12V) Provision of Auto manual mode selection
Auto Phase Selector The AMF Controller will be inbuilt with auto phase selector which will select any two phase or single phase out of 3 Phase. There will be a electrical and mechanical interlock between each contactor to avoid short circuit in case of electronic failure
Set point-for high temperature alarm Factory set (“ON” at 40°C and “OFF” at ON – 3°C
DG set Mains/DG status, DG accumulated hours, DG voltage, DG
measurements Energy Measurement (DG KWH)
Mains Input Voltage, Output voltages for line conditioning module,
measurements Main’s Energy Measurement (EB KWH)
Battery Measurements Battery running hrs & KWH (Accumulated)
LED Indications: Main’s ON, DG ON, Smoke/ Fire Alarm, DG Common Fault, Fuel Low, System battery low, High Shelter temperature
List of potential free dry contacts Alarms will be extended to NOC / TOC through changeover contact (both „NO‟, „NC‟ ).
Main’s fail, Shelter Door open/ Intruder, Low fuel level, Common fault — LLOP/Alt fault/HCT/HWT/V belt/Dg fail to start/DG fail to stop, Smoke/Fire, Load on DG, DG Fail to stop, DG Fail to start, DG over load, Shelter high temperature, Site on battery, BTS Battery Low.
Standard setting Setting in the AMF Controller can change manually & Laptop
Site Calibration All measured parameter can you calibrate through S/W on field
Dual DG Logic Will be provided the Dual dg logic on sequential basis.
