Parking Management System

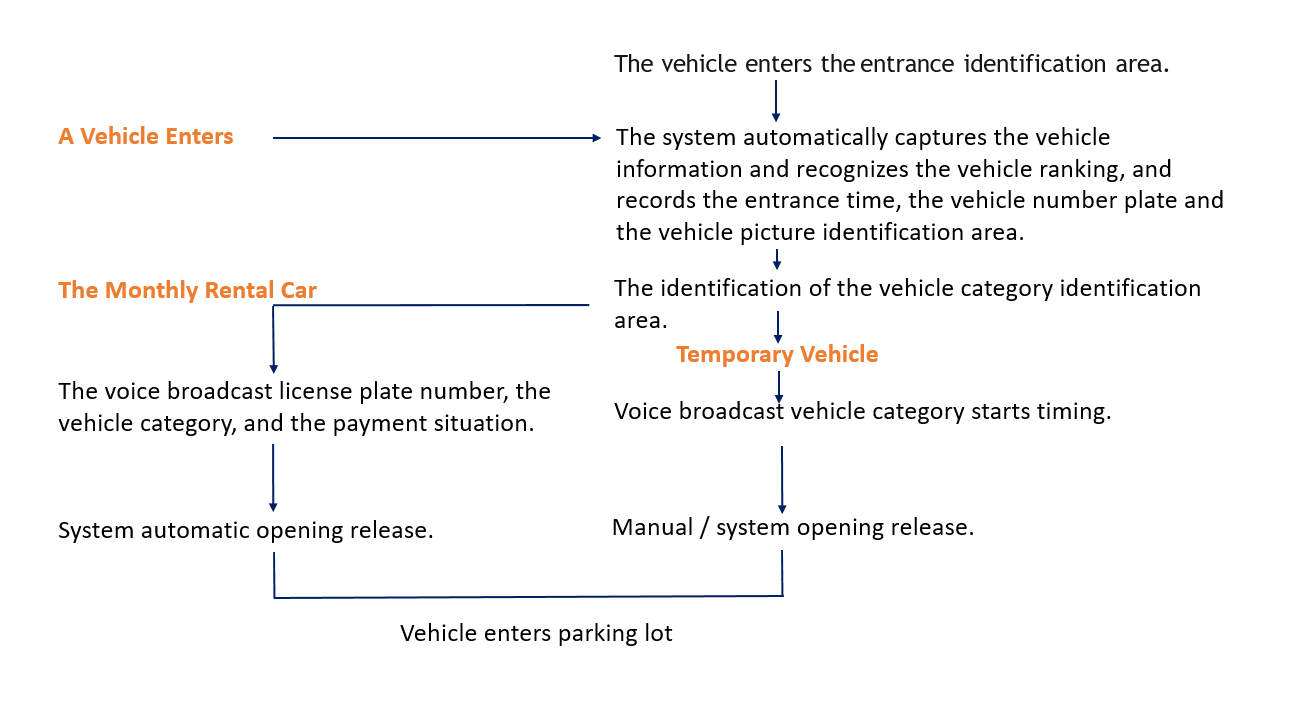

Entrance Schematic



  1. The vehicle enters the identification area
  2. The license plate recognition camera automatically scans and recognizes the license plate number, and then retrieves the video thro ugh the camera to find the clearest picture and transmits it to the computer database, which is presented to the online m oni tori ng screen thro ugh software.
  3. If the vehicle is not full or the vehicle is in a fixed vehicle condition, the gate is released, and the vehicle entry time is recorded. The vehicle passes over the entrance and enters the parking lot. The gate automatically closes and the system automatically refreshes the parking space information.
  4. The whole process is completed automatically, without the intervention of the staff, the vehicle is always in driving state, no need to stop.

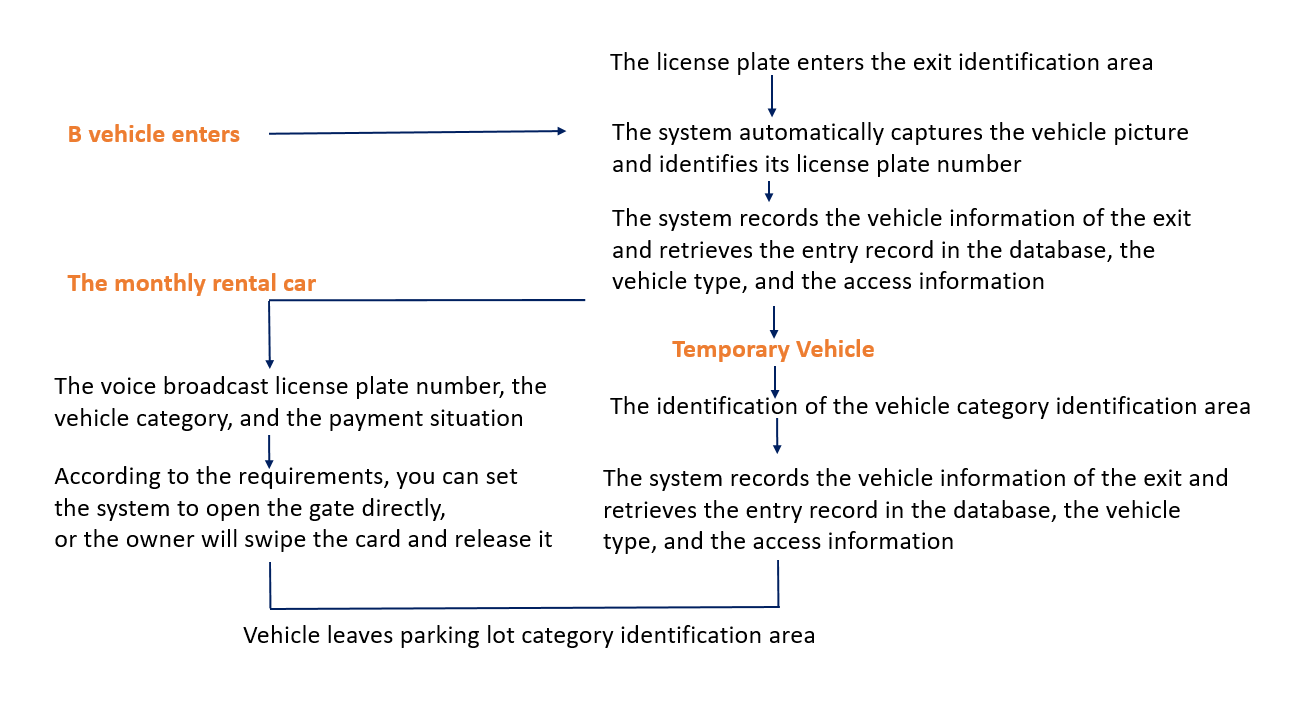

Export Schematic



  1. The vehicle leaves the license plate recognition area.
  2. The license plate recognition system automatically recognizes the license plate number and then retrieves the license plate category by searching the data.
  3. The computer displays the validity period of the car (VIP or monthly car) or the balance (recharge card), the amount of the charge (temporary car), and other prompts.
  4. If the vehicle is in a fixed vehicle condition, the gate will automatically release the lever, and the computer will recall the image captured during the entry of the vehicle, the admission time, and so on. If it is a temporary car, the vehicle must be suspended to leave If the vehicle is blacklisted, whether it is a temporary or fixed vehicle, the gate will not open, and the system will send out an alarm signal to inform the staff.
  5. The vehicle crosses the exit and leaves the parking lot. The system records the departure time of the vehicle and the system automatically refreshes the parking space information.
