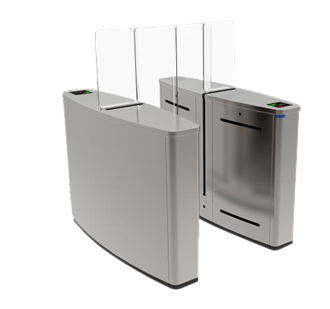

Flap barriers

Flap Turnstile Series

(Model AX-PY001, Channel width: ≤600, Size:1200 x 330 x 990 mm)

(Model AX-PY001, Channel width: ≤600, Size:1200 x 330 x 990 mm)


Features

With fault self-test and broadcast function, it is convenient to maintain and use equipment The operating status of the programmable device is via the built-in keypad on the main control board. Mechanical structure, induction anti-pinch function, when the telescopic arm is reset, it will stop automatically, or the motor will stop working within the default time and reset again after the default delay, and the force is very small (less than 2kg) Anti-collision function, the wing door is automatically locked when no open signal is received After the power is cut off, the channel will automatically open and automatically close after power-on. Remarks: Expandable functions: 1. Counting function 2. The chassis is lengthened, and the telescopic arm material can be selected.

Technical Parameters:

    Size: 1200x330x990 mm.

    Passing speed: 35 people / minute.

    Input voltage: 100V ~ 220V

    Ambient temperature: -25°C ~ 70°C

    Open brake signal input: 12V solder joint

    Unlocking time: 0.2s

    Channel width: ≤600 mm

    Drive voltage: 24V

    Power: 30W
