Automatic Number Plate Recognition System Description

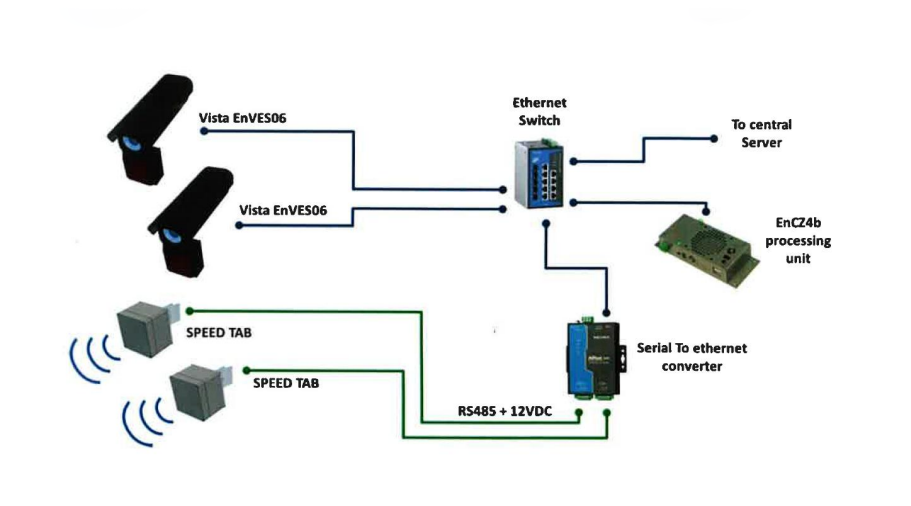

The system consist of a Vista EnVES Series Camera, SPEED TAB RADAR (one of them each for every lane to be monitored), one more or processor unitEnCZ4b to process, store and make available data collected by transit lane monitored and workstation that allows the operator to view transit.

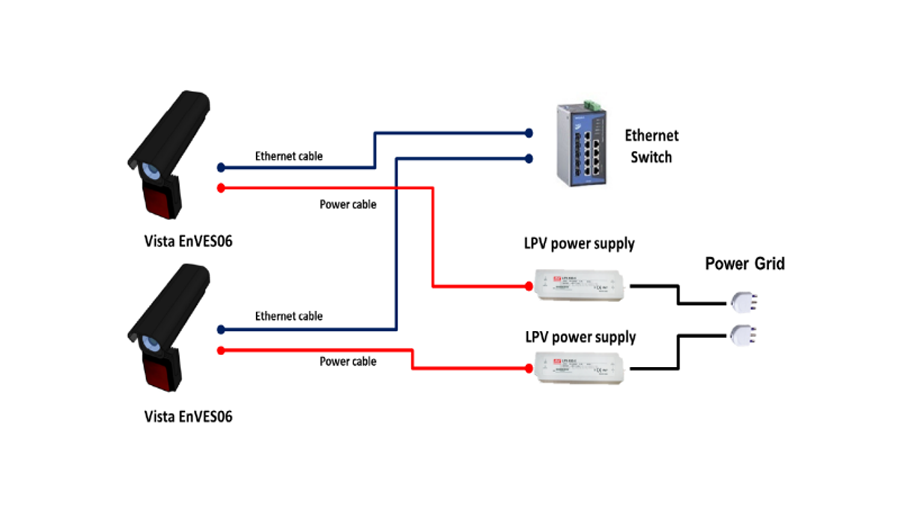

1. CAMERA: Image acquisition system Vista EnVES06
Vista EnVES cameras is family of image acquisition system specifically designed for enforcing (like instant speed and RLVD) and ANPR applications. This camera can monitor one lane. The apparatus consists of a Vista EnVES Megapixel camera into enclosure with integrated infrared illuminator. Vista EnVES06 camera has an external IR which is integrated with the camera. This provides easy installation. The IR is suitable for high distances and can be used at gantries or side poles. The EnIR20 series IR powerful illuminators are specially designed for enforcing applications and for better plate recognition.
Main features:
| Feature | Value |
|---|---|
| Max resolution (pixel) | 1920x1080 |
| Max FOV (horizontal) | 65° |
| IR light divergence | 20° |
| Wave length (nm) | 850 |
| LED light classification IEC/EN 62471 | EXEMPT |
| IP protection | 66 |
| Supply voltage range | 12-28VDC |
| Max Power consumption | 70 W (power supply Mean well LPV-100-24) |
| Working temperature range | -40°C ÷ + 70°C |
| Dimensions | 134 mm x 450 (length), length bracket 220 mm |
