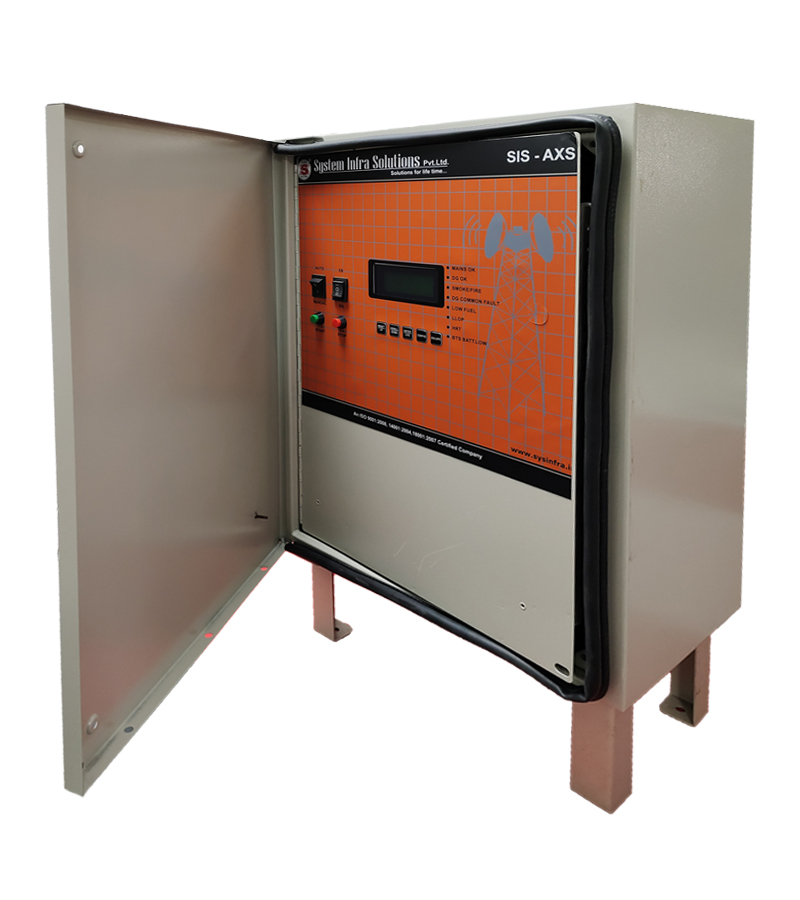

AMF Panel (Outdoor)

We hereby take pleasure to introduce M/s System Infra Solutions Private Limited (SISPL) having an international quality standard manufacturing facility of 4000 Square feet for Telecom products. SISPL also has a very strong world-class team to provide services & solutions impacting the global communications world. Our culture of continuous innovation in our products and solutions has been able to generate huge value for our customers. SISPL manufactures Telecom Equipment like AMF Controller, AMF Panel, DC Energy Meter, Dual DG Panel, Free Cooling Unit, and similar products. SISPL is established in the telecom sector since October 2000 with a vision of becoming an end-to-end cost-effective Infrastructure Support Partner (ISP) to the Global Telecom Industry and others as well. Our AMF with NOC integrates existing AMF (Any Make) / PIU (Any Make) / IPMS / I2PMS / IPDMU to help our customers build a stronger and reliable network to increase network performance and efficiency of their existing (old) network. This helps customer monitor their OLD networks elements which generally works in isolation. SISPL is an ISO 9001:2000 certified company; success in a very short span is a result of its desire to use the finest technology, with lead in execution excellence. SISPL believes in providing its customers best quality products at competitive prices. Its organization-to-organization contact policy, impeccable innovation, and technological advancements help it to understand the requirements of its customers and serve them the best. SISPL extremely effective training Center and Pan India Presence give huge confidence to SISPL customers which includes Mobile Operators, Tower Leasing Companies, and OEMs. We are thankful to lead companies in the telecom sector who trust SISPL of providing cost-effective products and solutions with world-class quality commitment.


..

AMF Panel (Outdoor)

AMF Panel (Transfer Switch)

SISPL Auto mains failure system (AMF) is one of the flagship products of system infra solutions, it can work seamlessly to work seamlessly either on 1ø/2ø/3ø supply, and it enhances power utilization from DG, Mains, Battery and Solar (Optional), it has an additional feature of remote management.

AMF follows a rational approach towards power management through

  1. AC Power measurement (1 ø/2 ø/3 ø)
  2. DG Parameter Monitoring & control
  3. Alarm consolidation
  4. GPRS Remote Management (optional)
  5. Fuel Management (Optional)

Power Rating supported by AMF panel is 15 KVA to 30 KVA.

The state of art controller is quite intelligent and comes with remote monitoring and controlling over a wireless network, which is an optional feature.

General Features of System Infra AMF are:

Group Category Specification Features
Controller support all appended logics Support all appended logics & conditions. Has 4 spare fault channels, 20 Event fault log (name of event, time & date at engine hours )
In Put logics of EB & DG EB 1 Ph DG 3 Ph Automation, Manual logics performance with safety alarm provision
EB 1 Ph DG 1 Ph Automation, Manual logics performance with safety alarm provision
EB 3 Ph DG 1 Ph Automation, Manual logics performance with safety alarm provision
EB 3 Ph DG 3 Ph Automation, Manual logics performance with safety alarm provision
DG Protection DG Freq :46-65 Hz. DG Freq :46-65 Hz.
DG-LV-1Ph-180 Auto reset
DG-OV--1Ph-260 Auto reset
HCT/HWT Hard reset
LLOP Hard reset
LFL Auto reset
Over load Hard reset
Over speed Hard reset
Engine fail to start Hard reset
Fire alarm PFC will be provided From Shelter Sensor, Site power to disconnect
Engine fail to stop Hard reset
DG start/stop 3 attempt start As per settable 1 sec delay in every crank attempt
1 Attempt Stop As per settable field settable 20 to 50 sec
DG Start / run / rest Logic (in case of EB fail & non EB) (Fuel optimizer) Voltage DC Below Set limit menu settable Field settable Range - 20 -60V for 48V system
Voltage EB Below Set limit - Menu settable As per set level
Temp. Shelter More than set limit - Menu-settable 15 - 60 Deg. C (extended temp. sensor with PFC at shelter)
DG run In Hrs Run-Menu settable 1 to 8 Hrs (steps of range-1 Hrs.)
DG rest In Hrs Rest-Menu settable 5 to 600 Minutes (steps of range-5 mts.)
Boost Charging Mode Menu settable interval in 1 to 1440 Hrs Continuous Power Supply for 12 Field Settable
Dry Contacts( PFC's) HCT/HWT
LLOP
LFL
Over load
Over speed
DG Common Fault
DG Fail to Start
DG Fail to Stop
High Shelter Temp
DG On Load From Contactor Status
Mains Fail From Contactor Status
Fire Alarm
HMR Hard memory DG Hours Cumulative up to xxxxxxx.x digit (7.1 digit)
Mains Duration Cumulative up to xxxxxxx.x digit (7.1 digit)
DG Battery Charging Static charger Required in both mode DG and EB
Emergency S/w Required
Indicating & recording parameters (can be covered under controller display) Required
EB - DG Voltages Indicating
EB - DG load Currents
EB - DG frequency Currents
KWH Cumulative temper proof
DG HMR Cumulative temper proof
EB HMR Cumulative temper proof
Visual Indication(LED) Load on mains, Load on DG, DG failure, DG start failure, Engine overload, HCT & LLOP and Over Speed. Charging Load on mains, Load on DG, DG failure, DG start failure, Engine overload, HCT & LLOP and Over Speed.
Indicating gauges Fuel Level indicator
High cylinder/water temperature gauge
Oil pressure gauge
Switches/Push button Auto/Manual, Mains contractor & DG Contractor ON, engine start.
AMF bypass switch (for mains & DG supply)
Earthing Bar Earth connection bar inside the panel, with provision of 5 to 8 holes of 8mm dia.
Cable & accessories Power cables as per KVA rating of DG
Cable entry 50mm dia hole with grommet -Qty-2 , 38mm dia hole with grommet- Qty 2

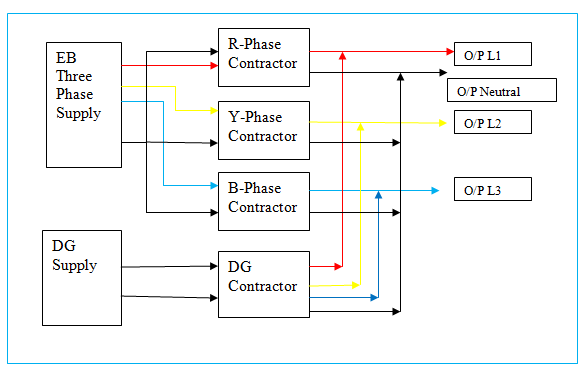

(Control diagram For No LCU Site)
